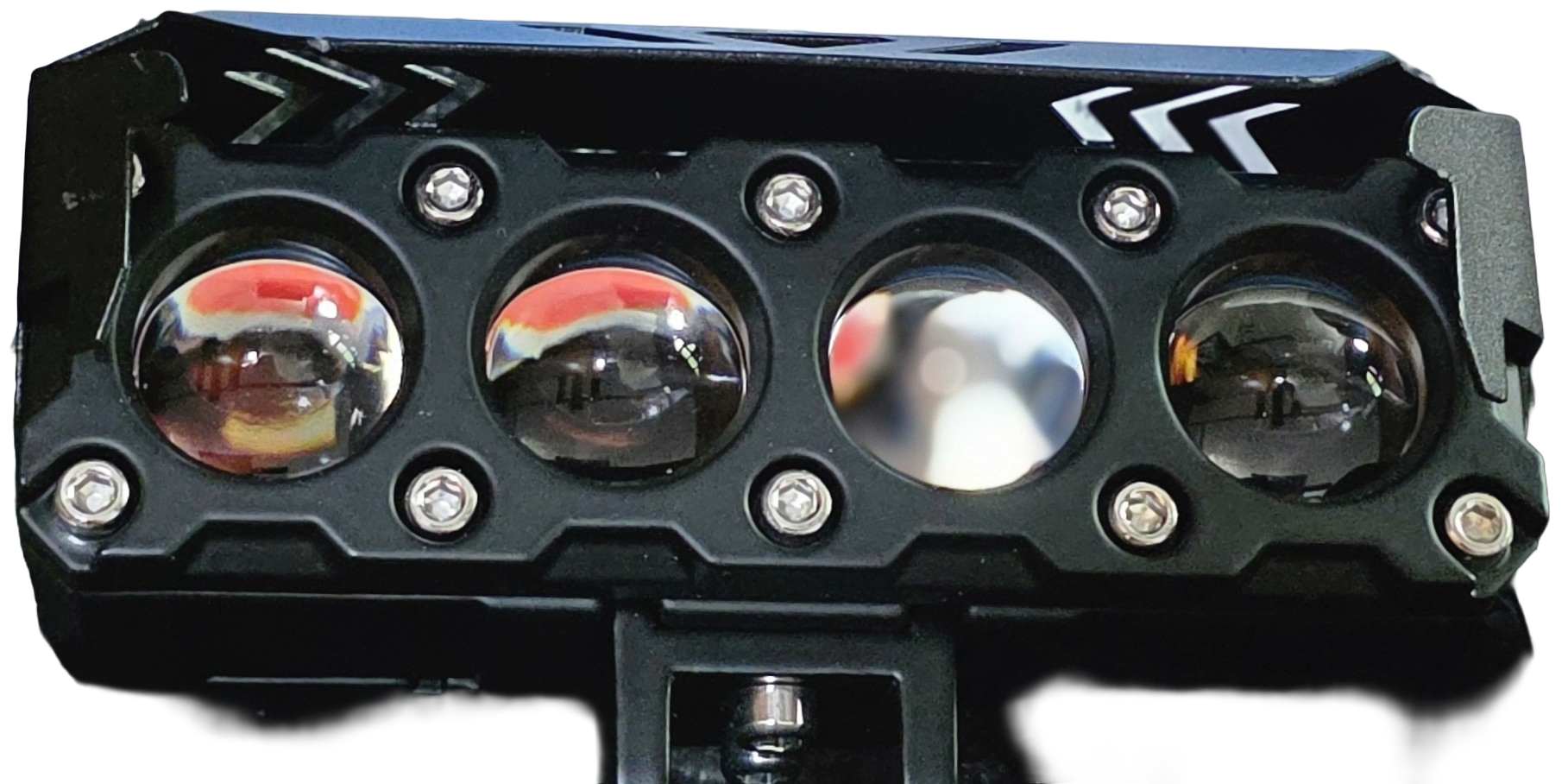

LIV HJG Lighting Revolution Auxiliary Light

LIV HJG Lighting Revolution – LED Fog Light / Auxiliary Light (4 Lens High-Low Beam )
High-Intensity Illumination for Safer Off-Roading and Night Driving!
The LIV HJG lighting system is designed to provide professional-grade illumination for motorcycles and off-road vehicles. Known for the “Lighting Revolution,” this brand focuses on high-durability LED technology that offers a brightness comparable to xenon lamps but with a much longer lifespan and lower power consumption. With its multi-mode lighting and rugged, waterproof build, it is an essential upgrade for any enthusiast looking for better visibility in harsh conditions.
Key Features & Benefits
Multi-Mode Lighting: Features five distinct wiring options—Devil Eye (red accent), White Light (long-distance beam), Yellow Light (fog/rain penetration), and a Strobe mode for emergency signaling.

Exceptional Lifespan: Rated for 50,000 to 100,000 hours, which is at least 15 times longer than traditional xenon lamps.
IP68 Waterproof Rating: Built to withstand full immersion and heavy rain, ensuring the electronics remain protected in the muddiest and wettest environments.
Wide Operating Temperature: Designed to perform in extreme climates ranging from -40°C to +85°C.
High-Efficiency DC Power: Operates on a DC 9V–36V range, making it compatible with almost all bikes, cars, and off-road vehicles.
Feature,Details
Brand,LIV HJG (Lighting Revolution)
Compatibility,DC 9V–36V Systems
Waterproof Level,IP68
Beam Colors,”White, Yellow, Red (Devil Eye)”
Material,High-Quality Die-Cast Aluminum Housing
Lifespan,”50,000+ Hours”.

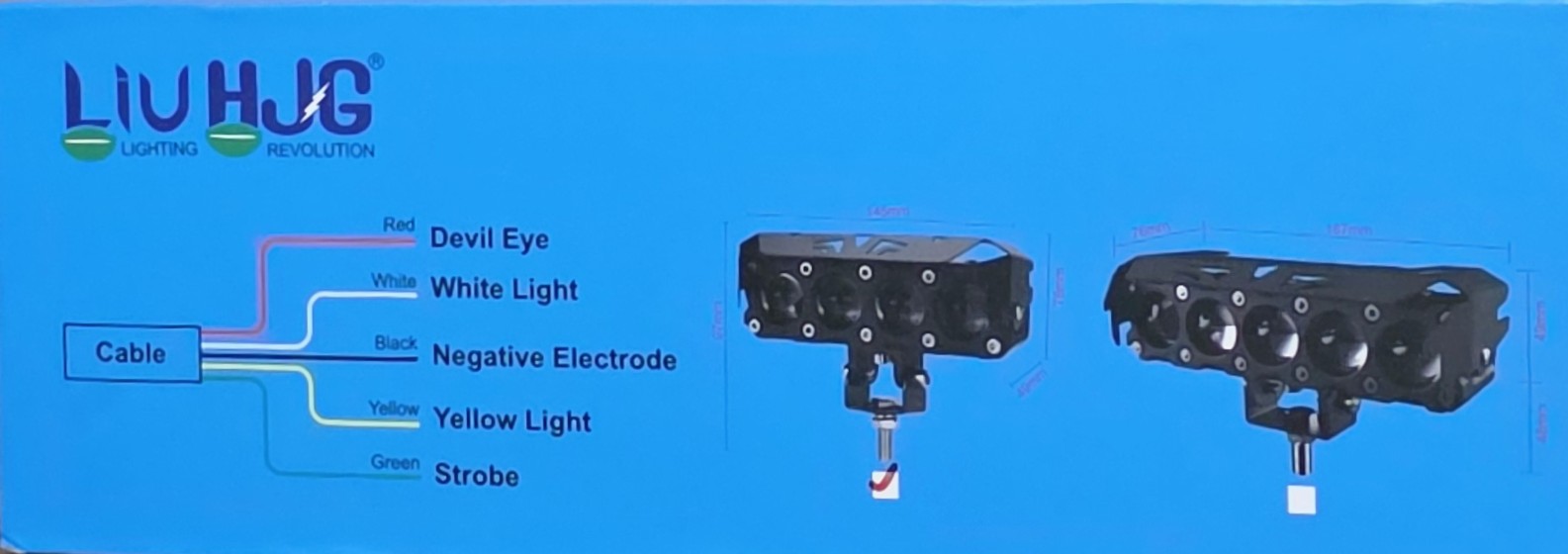

Wiring Diagram & Dimensions
The unit features a color-coded 5-wire system for easy integration:

Red: Devil Eye (Red)

White: Main White Light

Yellow: Yellow Fog Light

Green: Strobe Function

Black: Negative Electrode (Ground)
